A product profile:

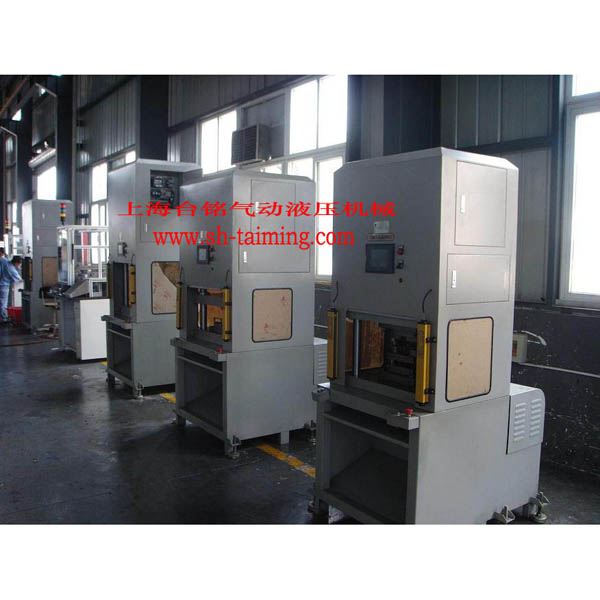

The IMD molding machine is my company for IMD industry (mold decorative mosaic injection technology) and film, pet, PVC sheet forming and the development of professional equipment, (Patent No. 200930164866.6), using a uniform way of far infrared radiation heating sheet. After constant temperature device, cylinder pressure to make instant molding.
Two, product features:
1 with liquid pressure as the power source, did not like the traditional equipment used to compress the air. Because the hydraulic pressure is almost zero, so that the stability of the pressure is much higher than the ordinary IMD molding machine.
2 the C type open structure, which adopts the whole welding, so the welding seam is processed by the stress, and is machined on the machining equipment.,
3 the speed of the machine is up to 250MM/ seconds, while the impact noise is no more than 80 dB.
4. The machine by high electrothermal conversion efficiency is more than 98%, rapid heating, thermal lag, uniform heating of the carbon fiber heating tube (from the far infrared, medicine known as the lifeline of human), its life (continuous burn) is equal to or more than 6000 hours, staff for a long period of operation the machine can strengthen the human body blood circulation, accelerate metabolism, enhance immunity.
5. The machine for the heating element for voltage control, close to the set temperature reduced the supply voltage, to ensure the heating pipe lit in a long-term state. Prolong its service life, display temperature and the actual temperature is controlled within plus or minus 1 degree Celsius.
Model PL4560 type
Volume (L) 1421 x (W) 750 x (H) 1905 (MM)
The weight of 1250 kg
The pressure of 5~8 kg / cm 2
Effective working area of 450 x 600MM
Power 220V/50Hz
Total power 6KW
The temperature range of ~350 is
This machine is specially designed for (IMD) - shaped film - injection molding technology, the patented film hot - press molding machine, its high - quality mechanical and control performance depends on the following factors:
1, the machine design to the production of safe as the dominant ideology, in order to ensure the requirements of the production process based on. The design uses high sensitivity of reflective grating safety protection system, the operator to provide accurate safety protection function, to improve work efficiency and reduce the rate of non-performing products.
2, automatic control is the biggest advantage of the machine. By Japanese NAIS FPI type PLC control, a series of functions with anti-collision protection manual / automatic, safety protection, mold temperature, automatic control, pressure protection, improve product quality and production efficiency, reduce non-performing rate of a powerful guarantee.
3, the heating system uses Japanese PID intelligent digital temperature controller.
4. Preheat and protect the time according to the different requirements of the product can be preset.
5, the heating module uses far infrared radiation heating tube in response to fast, energy saving.
